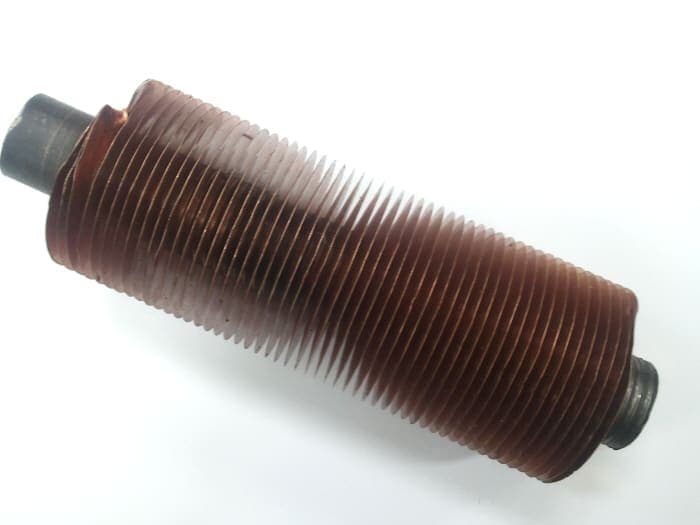

Foot Finned Tubes are utilized into an heat exchanger, which does not exceed near 400 degrees, and used primarily in air-cooled applications (including large radiators and large compressor oil coolers). L-foot tension wound finned tubes consist of thin aluminum fin strip tightly wound helically around the tube circumference. Tube materials are carbon steel, stainless stell, or brass. A foot, 1/16" wide, is first formed on one side of the fin strip (thus, the name "L-Foot"). The strip wound tightly around the tube, with the foort bearing on the tube outer suface. A typical fin spacing is 10 fins/in of tube length (can be varied). Tension in the fin strip as it is wrapped around the tube serves to hold the fin firmly in place.

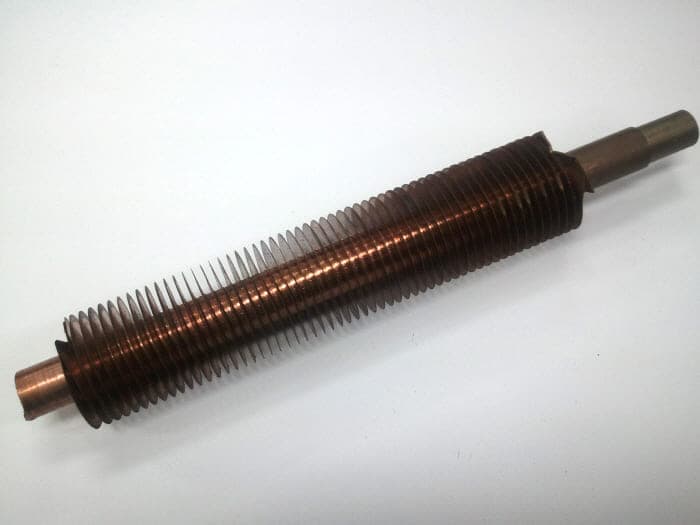

LL-Fin Tube is manufactured in the same way as the "L" finned tube type except that the fin foot is overlapped to completely enclose the base tube thereby giving excellent corrosion resistance. This type of finned tube is often used as an alternative to the more expensive extruded type fin in corrosive environments.

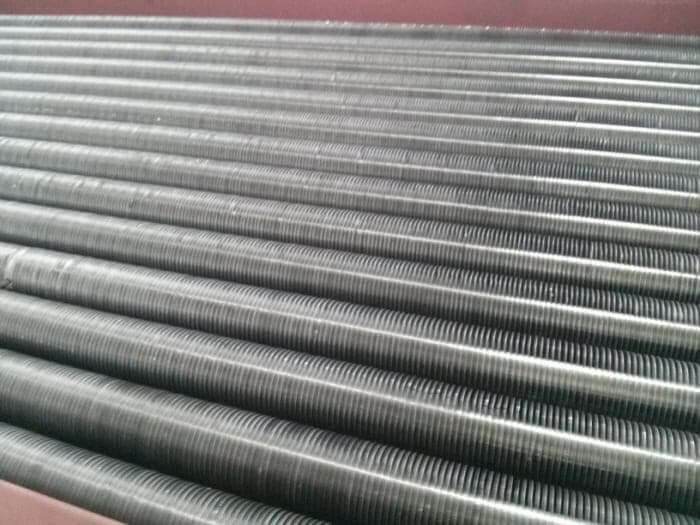

KL-Fin Tube is manufactured exactly as the 'L' finned tube except that the base tube is knurled before application of the fin foot. After application, the fin foot is knurled into the corresponding knurling on the base tube thereby enhancing the bond between the fin and tube, resulting in improved heat transfer characteristics.

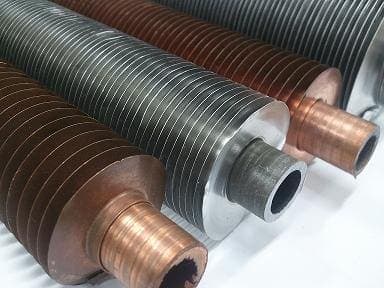

G-Fin Tube is an aluminium fin stripped tube, which is wounded into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures.

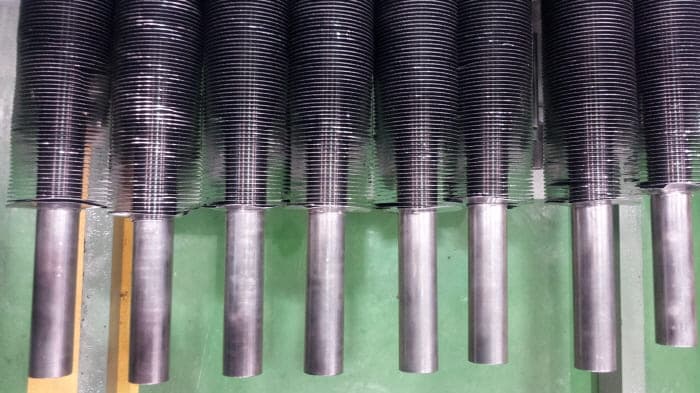

Extruded Fin Tube is formed from a bi-metallic tube consisting of an aluminium outer tube and an inner tube of almost any material. The fin is formed by rolling material from the outside of the exterior tube to give an integral fin with excellent heat transfer properties and longevity. Extruded fin offers excellent corrosion protection of the base tube.
